DHW heat pumps
WWK 224 ZA

  • Product details

    Become more self-sufficient at home

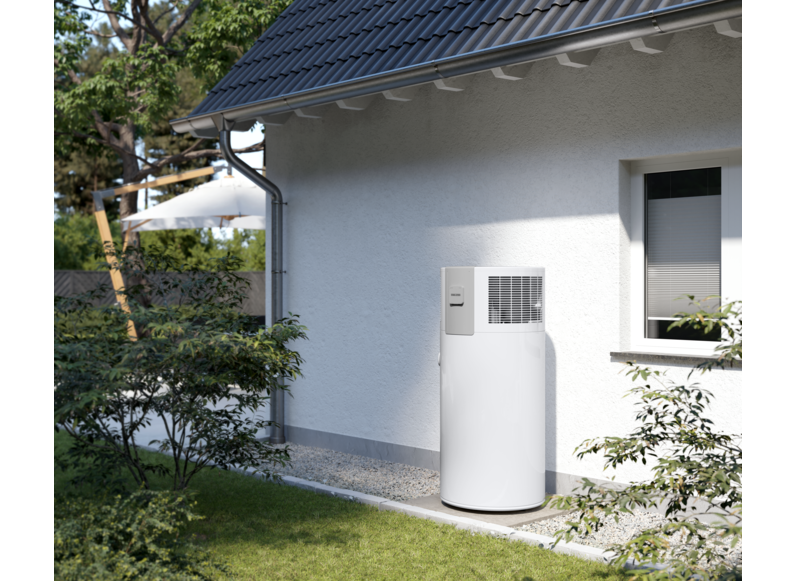

    Self-sufficiency in your own home is an important factor. You can take a big step in the right direction with this DHW heat pump for outdoor installation. Not only does it use renewable sources for DHW heating, but with its superbly insulated cylinder, it also achieves excellent output values. For you, that means hot water for a bath or shower whenever you need it – with low energy consumption.

    Easy to operate and connect

    A user friendly LCD screen helps you operate the appliance. It shows you at a glance how much mixed water is currently available. What if you want to connect the heat pump to your photovoltaic system? Nothing could be simpler. The appliance comes with this option as standard, allowing you to make clever use of energy from the sun as well as the air.



    Technical datasheet

    Product Number: 203870

    Nominal load profile (EN 16147): L

    COP (EN 16147 / A20): 2,92

    Nominal DHW temperature (EN 16147): 61 °C

    Maximum available nominal amount of DHW at 40 °C (EN 16147 / A20): 322 l

    Height x diameter: 1501 x 690 mm

    Nominal capacity: 220 l

    Max. mixed water amount at 40 °C: 335 l

    Average heating output (A15 / W10-55): 1,6 kW

    Average heating output (A7 / W10-55): 1,2 kW

    Average sound pressure level at 1 m distance, free field: 45 dB(A)

    Sound power level (EN 12102): 56 dB(A)

    Min./max. application limits for heat source: -5/+42 °C

    Max. DHW temperature with heat pump: 65 °C

    Min. DHW temperature with heat pump: 61 °C

    Show all

    Download as PDF

    Equipment datasheet
