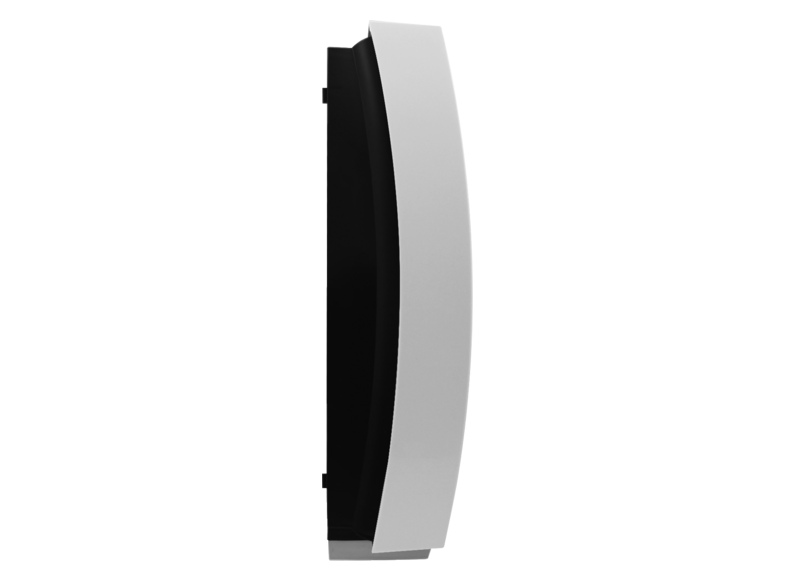

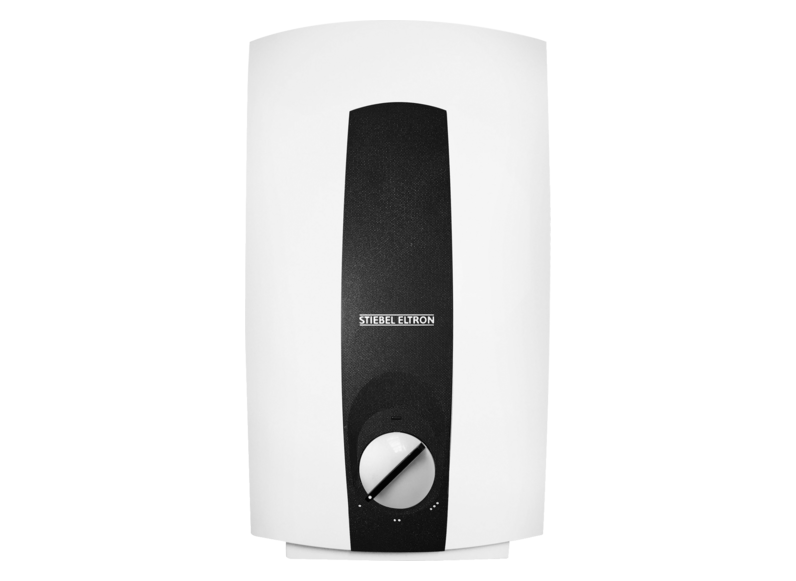

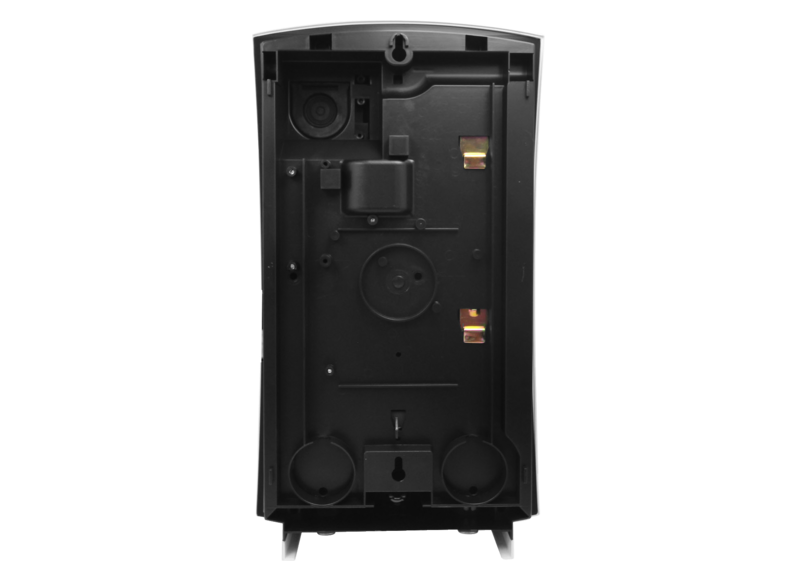

Compact instantaneous water heater
DHC EL

  • DHC 8 EL (ZA)
    • Sufficient hot water for multiple draw-off points

    Select other variants

    Rated output

    6.0  kW

    8.0  kW
    Questions about the product Get contact

    Product details

    REMOVE_TU

    REMOVE_TU REMOVE_TU

    REMOVE_TU REMOVE_TU


    Reach-Information
    Technical datasheet

    Product Number: 235971

    Height: 360 mm

    Width: 200 mm

    Depth: 110 mm

    Weight: 2 kg

    Electrical fuse protection: ELCB

    Rated output: 8.0 kW

    Type: Closed outlet

    Automatic flow switch: true

    Cylinder type: Copper

    Temperature setting: 3-stage 40/50/60 °C

    Temperature control: Electronic temperature control

    Anti-scalding protection: Thermostat with manual reset

    IP rating: IP25

    Show all

    Download as PDF

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
