Air source heat pumps

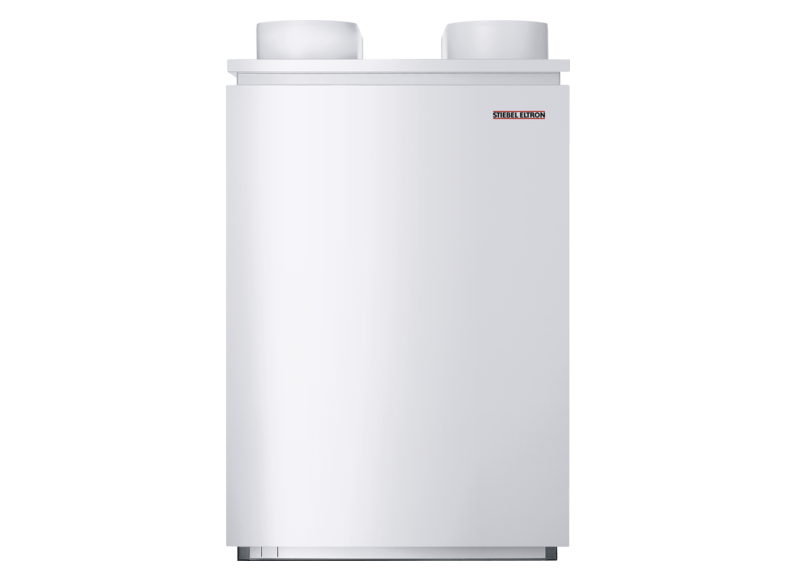

WPL 23 E

    • Air source heat pump installed indoors or outdoors for heating
    • Ideally suited to modernisation
    • High output and excellent COP even at low outside temperatures
    • Cost savings through efficient heat pump defrosting
    Questions about the product Get contact
    award

    Product details

    Experience a strong performance on any terrain

    It is one of the most versatile models amongst air source heat pumps: It will win you over, almost regardless of what type of building you are planning an efficient heating system for. Even at outside temperatures of -20 °C, this heat pump achieves high flow temperatures and is therefore also ideally suited to installation in a modernised older building.

    Highly flexible and universally applicable

    If you need to supply a larger building or smaller commercial units, you have the option to connect several appliances and thereby increase the output.


    ERP product datasheet
    Reach-Information
    Technical datasheet

    Product Number: 227758

    SCOP 35 °C (EN 14825): 3.775

    Energy efficiency class, room heating in moderate climates, average temperature applications (A+++ → D): A+

    Heating output at A2/W35 (EN 14511): 15.73 kW

    Heating output at A-7/W35 (EN 14511): 13.21 kW

    COP at A2/W35 (EN 14511): 3.62

    COP at A-7/W35 (EN 14511): 3.14

    Sound power level (EN 12102): 65 dB(A)

    Min./max. application limits for heat source: -20...40 °C

    Min. application limit on heating side: 15 °C

    Max. application limit on the heating side: 60 °C

    Height: 1116 mm

    Width: 784 mm

    Depth: 1182 mm

    Weight: 211 kg

    Refrigerant: R407C

    Show all

    Download as PDF

    Equipment datasheet

Installation Information:

Please ask your local power supply utility or a registered electrician to install appliances that are not fully wired, i.e. ready to plug in. The electrician should also be able to assist you with obtaining the agreement of the respective power supply utility required for the appliance installation.
